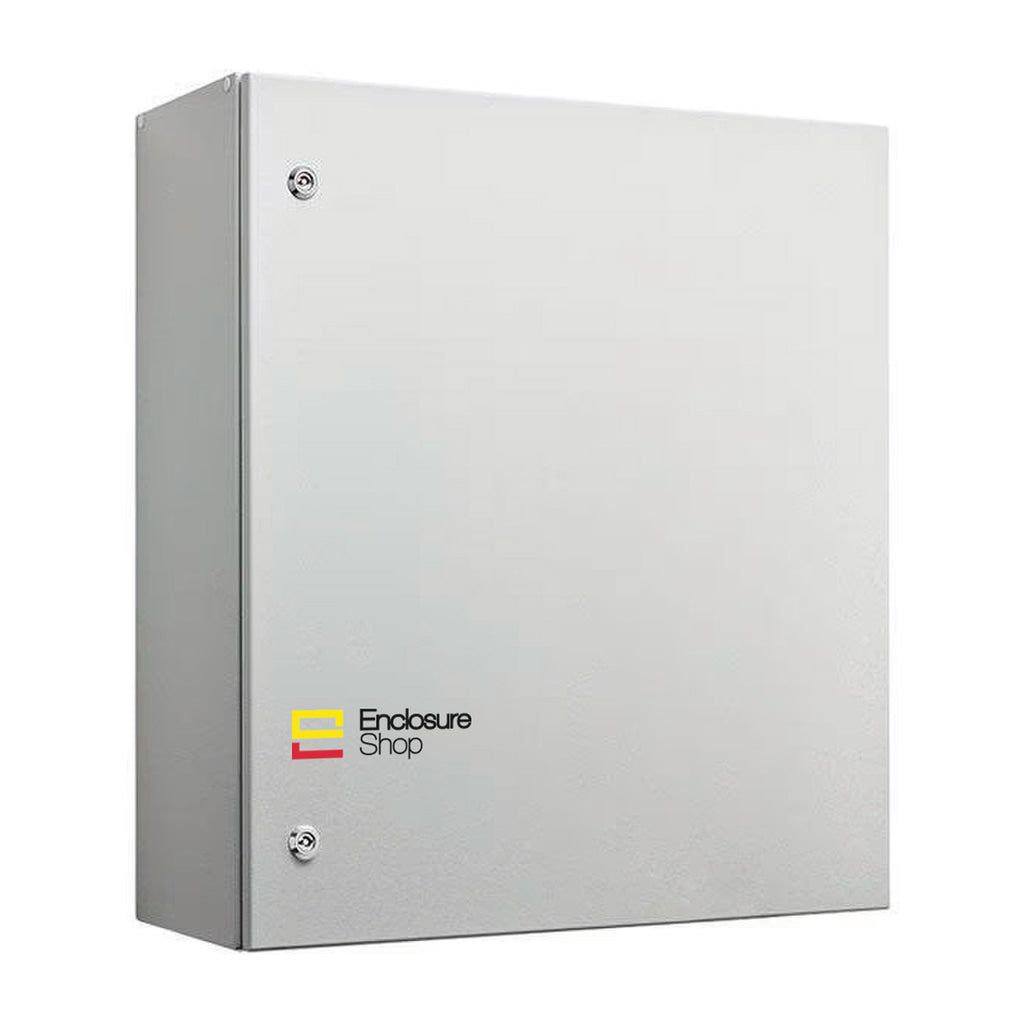

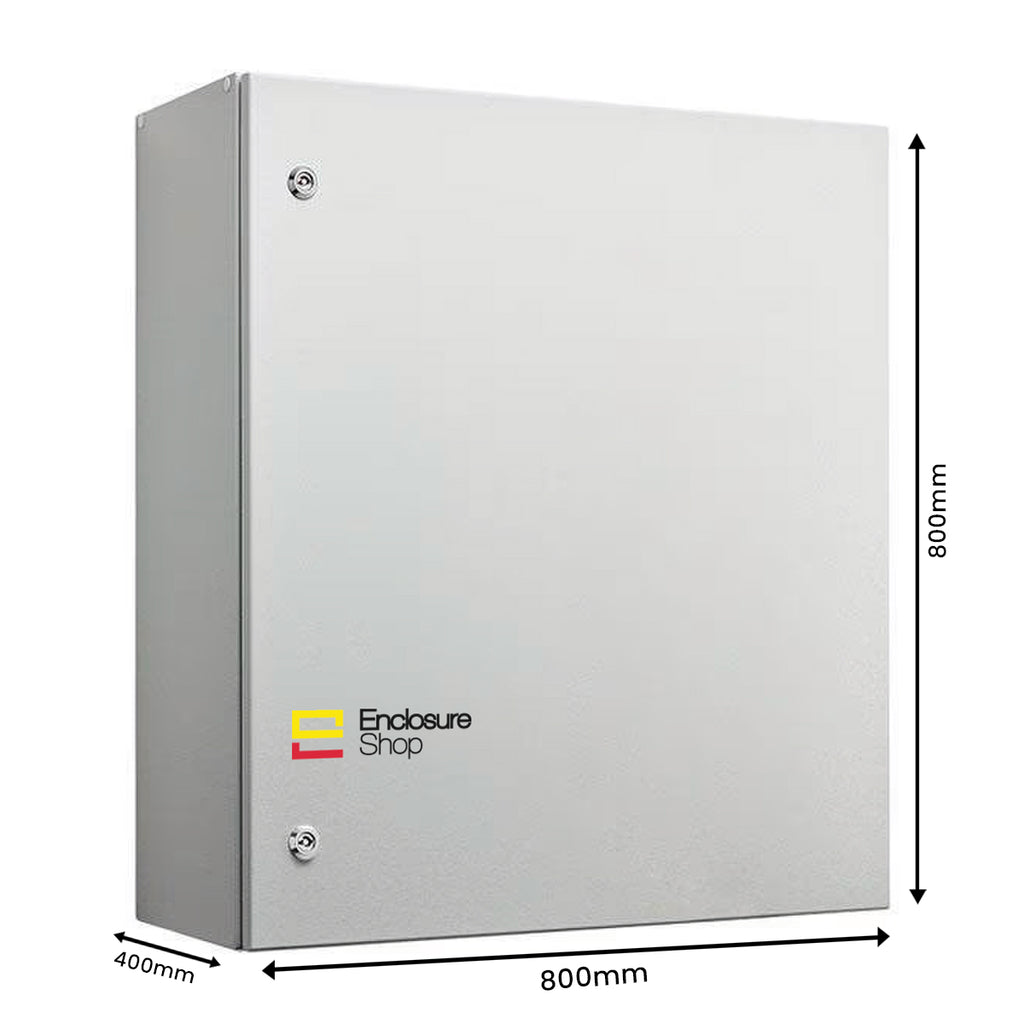

Steel Wall Mounted Electrical Enclosure 800mm x 400mm x 800mm - SWM40

Our SWM40 IP66 Rated Galvanised Steel Electrical Enclosure for sensitive electrical equipment. Each Galvanised Steel Electrical Enclosure is powder-coated with UL approved epoxy polyester with a textured finish in Colour Grey RAL7035. This single door electrical cabinet is for wall mounting (wall mounting kit available as optional extra).

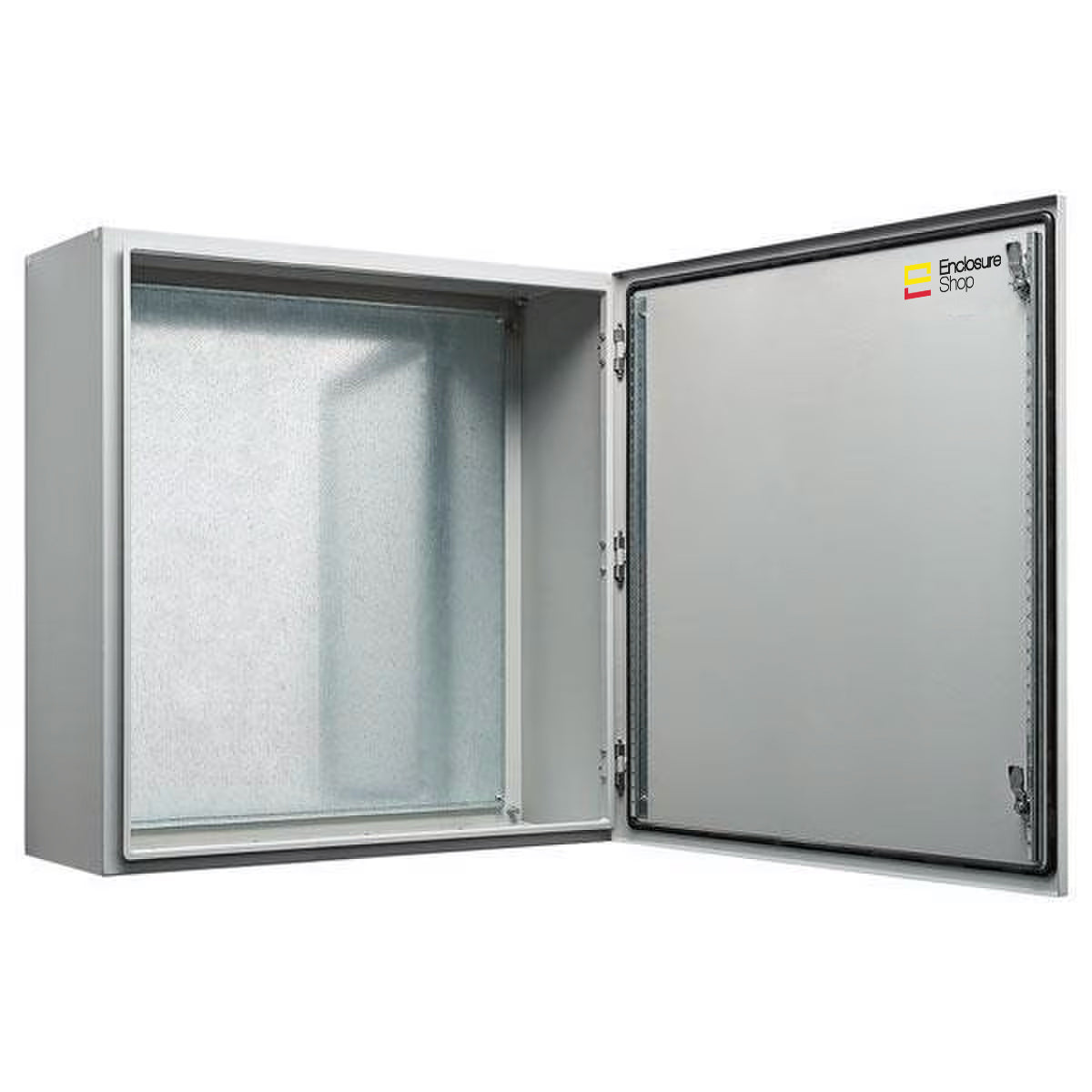

The robust surface mounted door in our steel electric cabinet is fabricated using 1.5mm galvanised steel sheet and incorporates concealed removable hinges with captive pins. The door is designed for a 110° opening. Each door contains cable management rails, an M6 earth stud a high quality machine-applied foamed in place (FIP) Polyurethane seal. Two internal cable management rails can be removed to provide additional space for equipment, duct and door mounted control components. The robust monoblock body is fabricated using 1.5mm galvanised steel sheet. Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounts and accessory fasteners to eliminate drilling and retain IP rating. Integral device plate mounts and M6 earth studs are provided.

A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading). The device mounting plate is fabricated using 1.5mm galvanised steel sheet, pressed to provide additional strength and supplied pre-fitted into enclosure as standard.

Optional Extras:

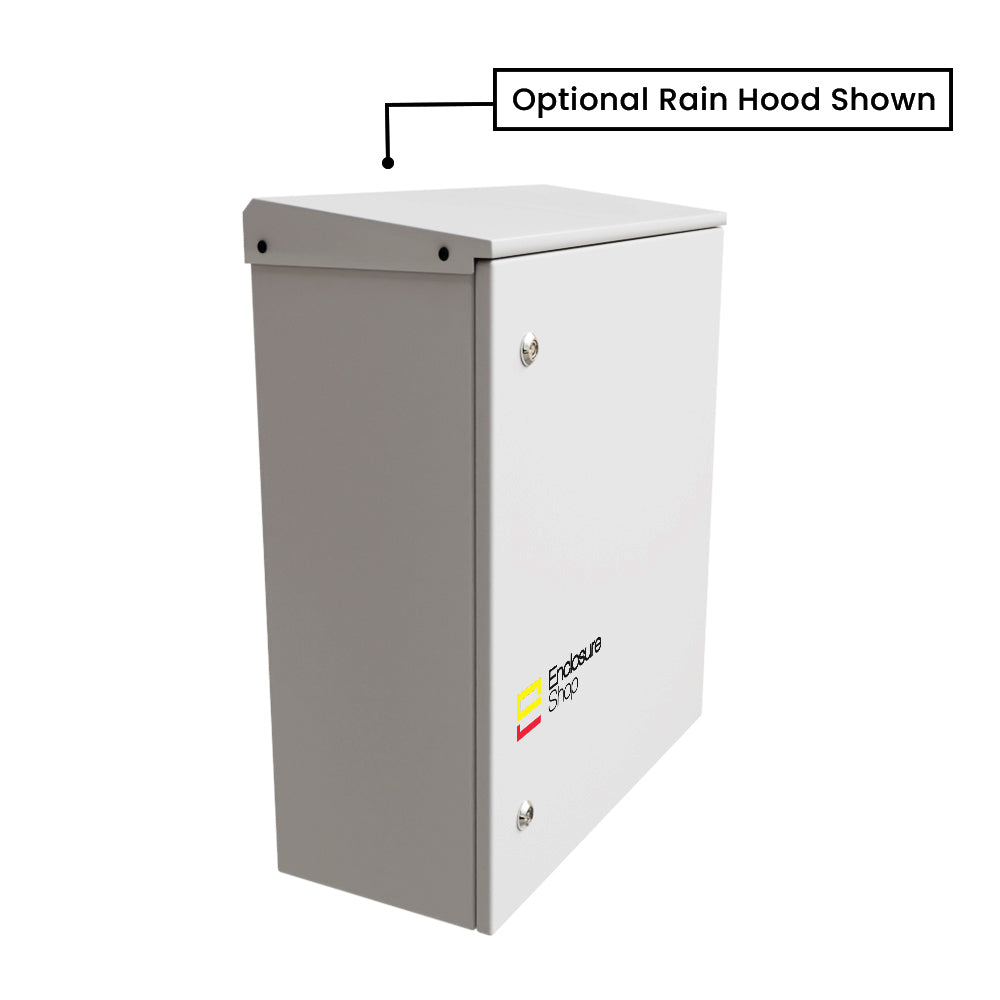

• Rain Hood - Steel sheet sloped roof to guide rain off of cabinet. Easily fitted using nutserts on every SWM enclosure, No need for drilling, Cabinet maintains IP66 rating.
• Wall Mounting Bracket Set - for Steel Electrical Enclosure - Set of 4 Brackets

Our Steel Enclosure are suitable for general industrial applications an comply with Standard: IEC 62208, IEC/EN/AS60529, (UL508A Optional), RoHS and Protection: IP55 IK10, NEMA 4 (Independent accredited test laboratory)

Materials Specification:

•  Body: 1.2mm -1.5mm galvanised steel sheet

• Gland Plate: 1.5mm galvanised steel sheet

• Door: 1.5mm galvanised steel sheet

• Device Mounting Plate: 1.5mm galvanised steel sheet

• Seal: Polyurethane. UL listed.
