Stainless Steel Walk In Enclosure 1250mm x 950mm x 2000mm - ERMCS1250-950

This ERMCS1250 Stainless Steel Enclosure Walk In Cabinet Enclosures are "root mounted" and are suitable for the protection of various items of industrial equipment. They are commonly used by Gas, Water and Electricity providers and local authorities along with the mechanical services industry and many others. Made from 4003 Grade Stainless Steel as standard it offers reliable and long-lasting protection for your meter or other electrical equipment.

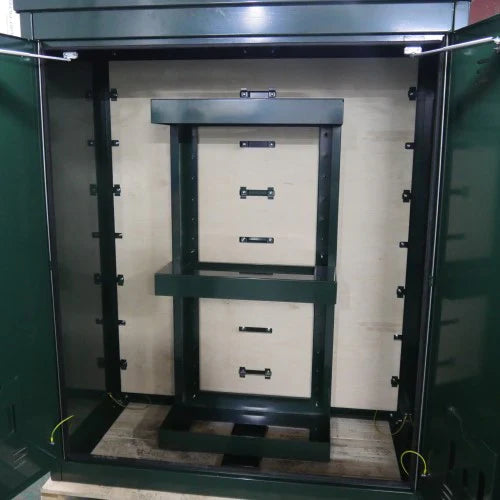

Each of the Steel Walk In Enclosures comes complete with the corresponding plinth (450mm height) onto which the unit can be mounted. The plinth (shown in the 2nd image, inside the cabinet for transportation) is buried in concrete, providing a secure point of installation.

To ensure a long service life the complete unit is manufactured from 2.0 mm thick stainless steel with a powder coated finish. Double opening door provides weatherproof storage for equipment on the roadside or site use.

They are commonly used by Gas, Water and Electricity providers and local authorities along with the mechanical services industry and many others. IP24 Rated with louvre vents or IP46 rating without ventilation louvres.

Included as Standard:

• 4003 Grade 2.0mm Stainless Steel
• Smooth polyester powder coated finish.
• Single 18mm External Grade Plywood Backboard.
• IP24 rating with ventilation louvres, IP46 rating without ventilation louvres.
• Three-point locking system with L handle, padlockable (10mm shackle) and shroud. Padlock not included.
• Strong, spring-loaded bolts to hold the doors in place.
• There is no internal separation, allowing plenty of space for your electrical equipment.
• 2° roof slope to back of cabinet as standard, peaked roof available if required.
• Earthing studs fitted to both body and door.
• Fully sealed door aperture.
• Ventilated via louvres on the doors (optional).
• Fitted with door stays.
• A4 document pocket.

• Supplied with plinth for installing into a concrete base (shown in 2nd image within the cabinet for delivery).

Colour Options:

• RAL 9005 Black Gloss
• BS4800 14C40 Dark Green Gloss

Our Stainless Steel housings are hand made in England and manufactured from the highest quality steel and finished with a powder coated finish to withstand the rigours of the harshest weather conditions.
