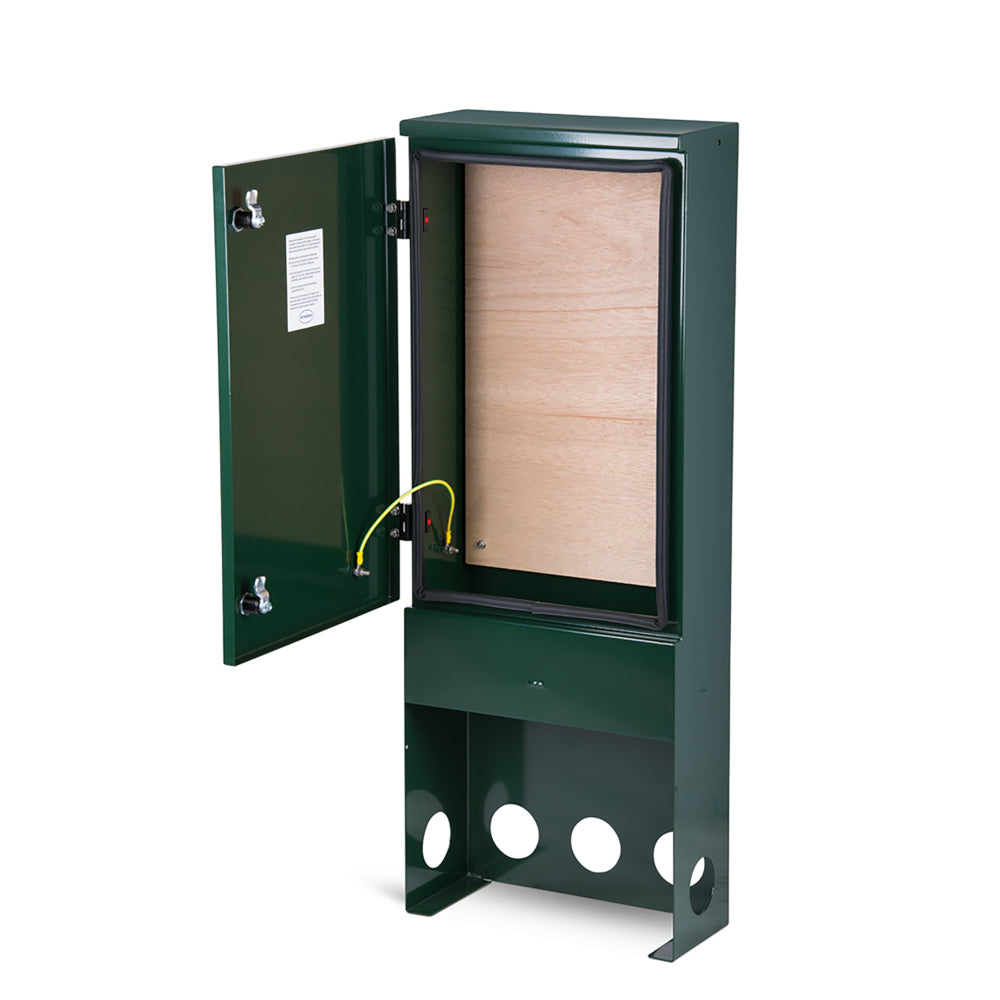

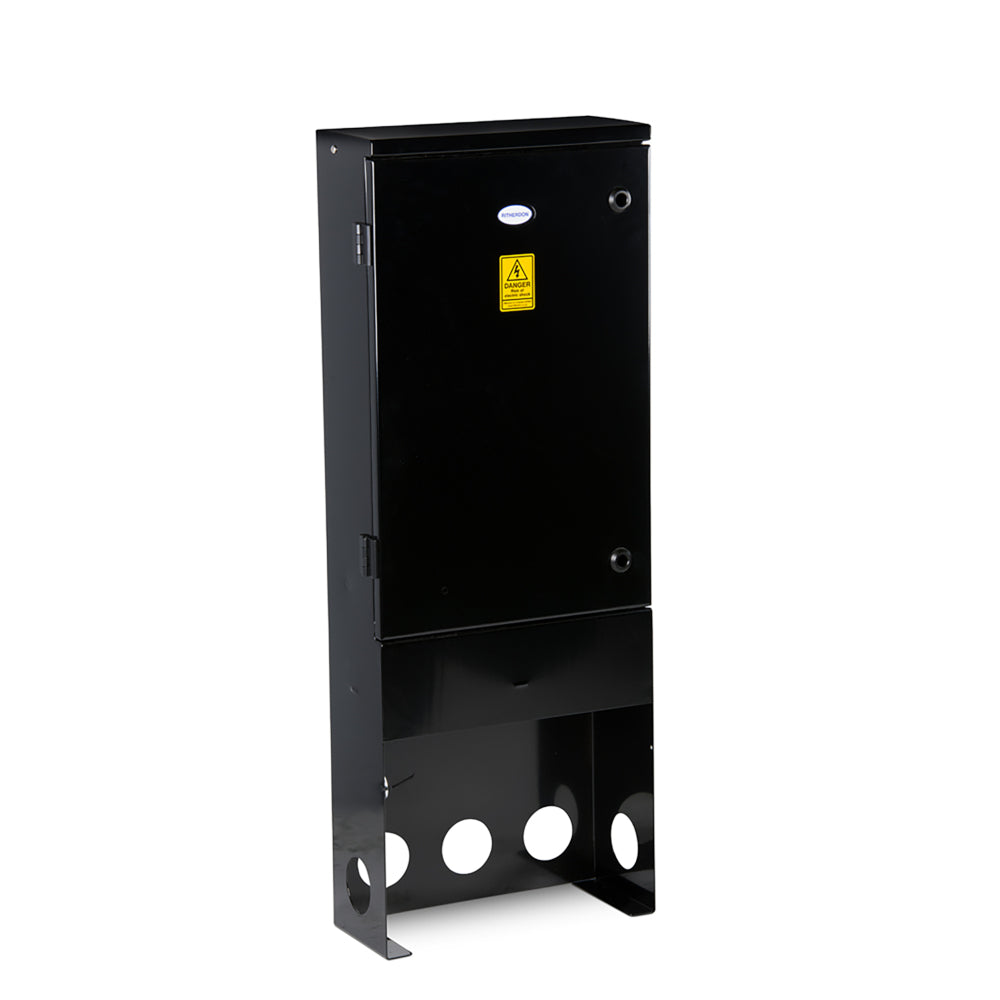

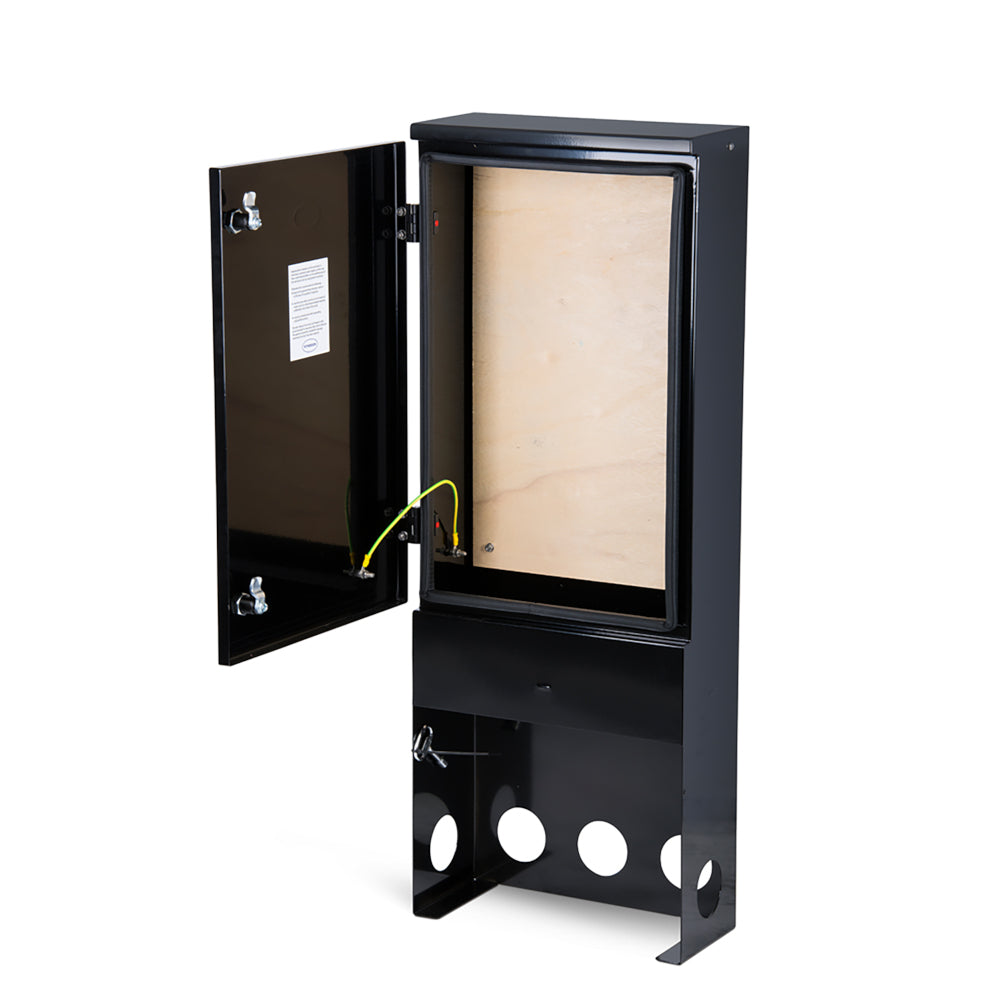

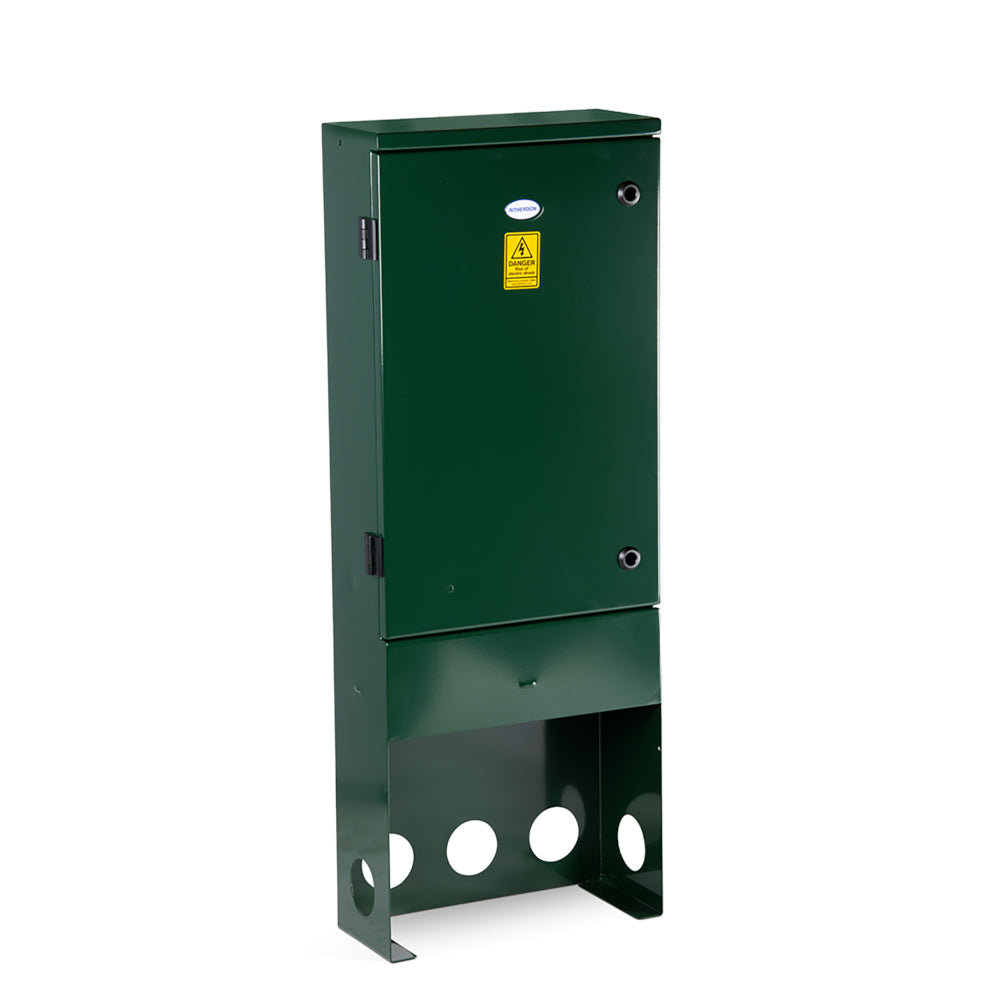

This ERHS400 Stainless Steel Root Mounted Feeder Pillar has a Hinged Door that is flush with the body and attached with a strong stainless steel hinge and has a watertight neoprene gasket. The unit is designed and manufactured to withstand moderate forced entry the perfect solution for protecting your electric meter or any electrical equipment. Made from 4003 Stainless Steel as standard with options for 304 or 316 Grade Stainless Steel for Coastal Installations, it offers reliable and long-lasting protection for your meter or other electrical equipment.
Feeder pillar comes root mounted. To ensure installation at the optimum depth a suggested ground level is marked on the outer faces of the pillar.
Access for cable ducting is provided through the lower front section of the pillar and duct apertures on the sides and back of the root. An earth cable is provided for bonding the door to the body, with two M6 studs complete with nuts and washers.
To ensure a long service life the complete unit is manufactured from 2.0 mm thick stainless steel with a powder coated finish. Single opening door provides weatherproof storage for equipment on the roadside or site use.
They are commonly used by Gas, Water and Electricity providers and local authorities along with the mechanical services industry and many others. IP46 rated.
| Dimensions | Width x Depth x Height (mm) |
| External | 400 x 171 x 1062 |
| Backboard | 380 x 12 x 580 |
| Working Depth | 150 |
| Lock Type | 8mm Tri Key Camlock |
Included as Standard:
Colour Options:
Our Stainless Steel housings are hand made in England and manufactured from the highest quality steel and finished with a powder coated finish to withstand the rigours of the harshest weather conditions.
