GRP Enclosure 800mm x 320mm x 1460mm - NX79

Our NX79 GRP Enclosure is compliant with BS (British Standards) and DNO (Distribution Network Operators) in the UK.

This IP54 rated enclosure is suitable for floor standing installations, and if required can be wall mounted.

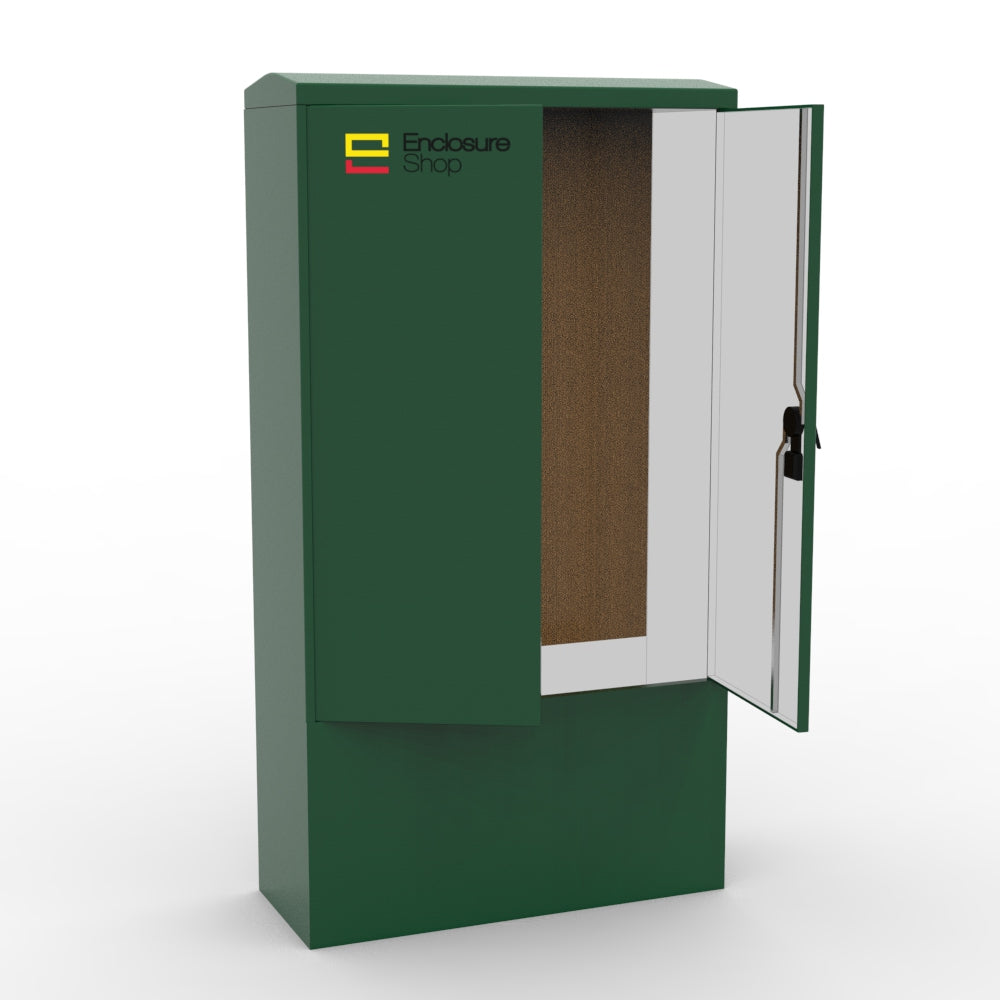

Double Opening Doors provide access to weatherproof storage for electrical equipment and various other items of industrial equipment. The cabinet doors have a three-point cylinder lock fitted and durable hinges, which help prevent the cabinet from damage and attempts at tampering and energy theft. The GRP cabinet doors are also fitted with a metal ring for the optional/additional security of a padlock (padlock not supplied).

These surface (floor or wall) mounted GRP cabinets are suitable for the protection of many different types of electrical and industrial equipment. They are commonly used by Gas, Water and Electricity providers, local authorities and the mechanical services industry, plus many others. IP54 Rated and made with Class 2 Fire Resistant Resin (30 Minute Resistance).

Our GRP housings are manufactured from the highest quality thick GRP materials to withstand the rigours of the harshest weather conditions and are IP54 rated.

The internal finish is a durable GRP in white with a 18mm plywood back wall to fix equipment. The GRP flooring is solid and strong for surface mounting and is made out of thick insulating, fire resistant and self extinguishing composite GRP (Glass Reinforced Plastic).

Specification:

• Double doors (removable)

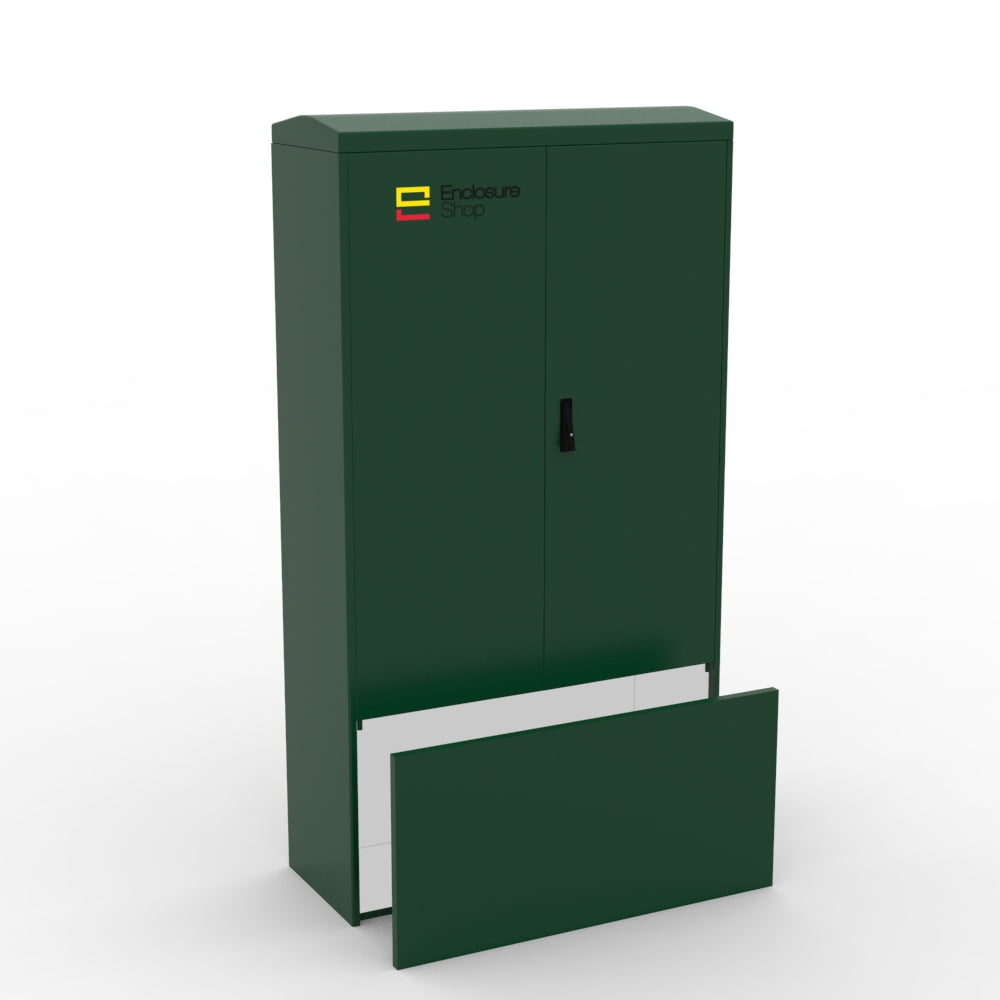

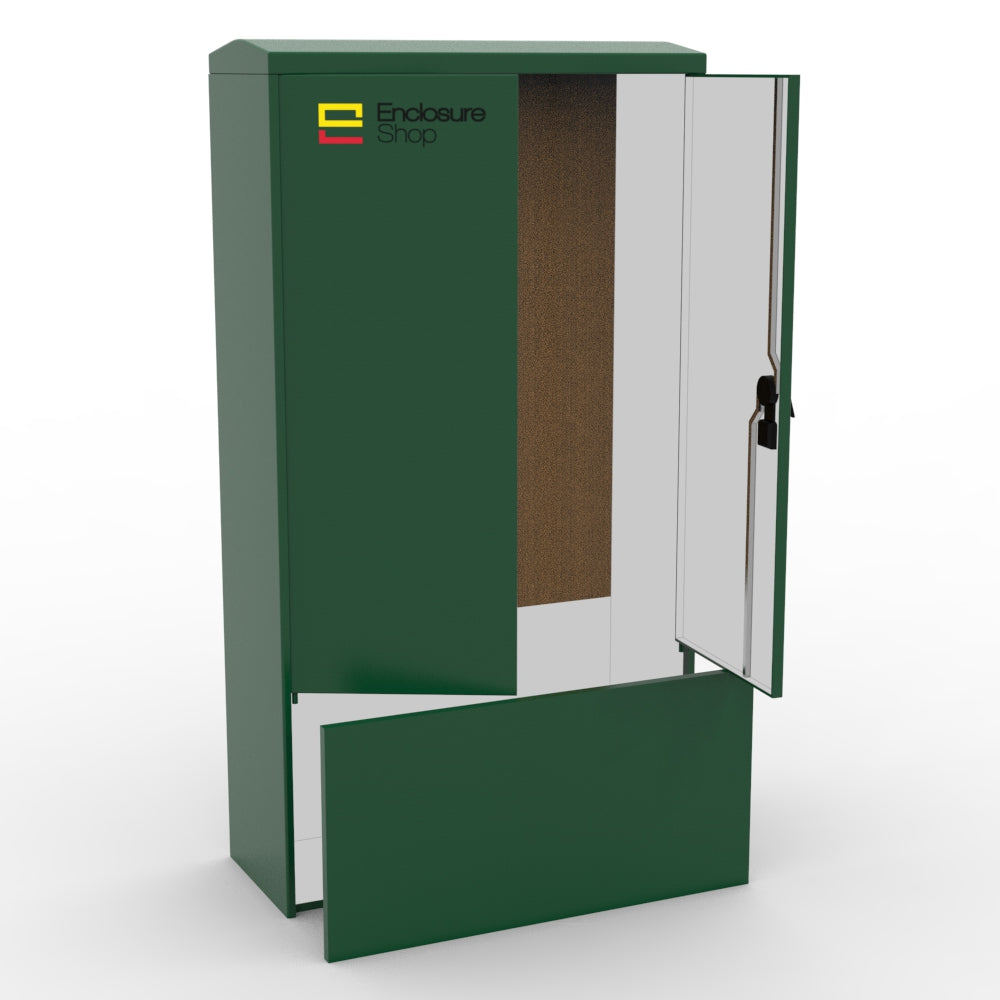

• Bottom panel (removable for access)

• Three-point cylinder lock with keys

• Built in metal ring to install a padlock (padlock not supplied)

• Durable hinges

• External finish (British Racing Green) - Smooth semi-gloss GRP

• Internal finish - durable white GRP

• 18mm treated plywood backboard for fixing equipment

• Full GRP base

• Dust/Water prevention seals (IP54 Rated)

• Made with Class 2 fire resistant resin (30 minute resistance)

Floor Standing install - fix to a suitable concrete base by drilling through the GRP base and fixing with suitable concrete bolts.

Wall Mounted install - remove the plywood backboard, drill through the back and fix to wall using appropriate fixings (taking into account the weight of the cabinet and the contents). Refit the plywood backboard.
